White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack

Product Categories
SL RELIANCE LTD
Contact Now

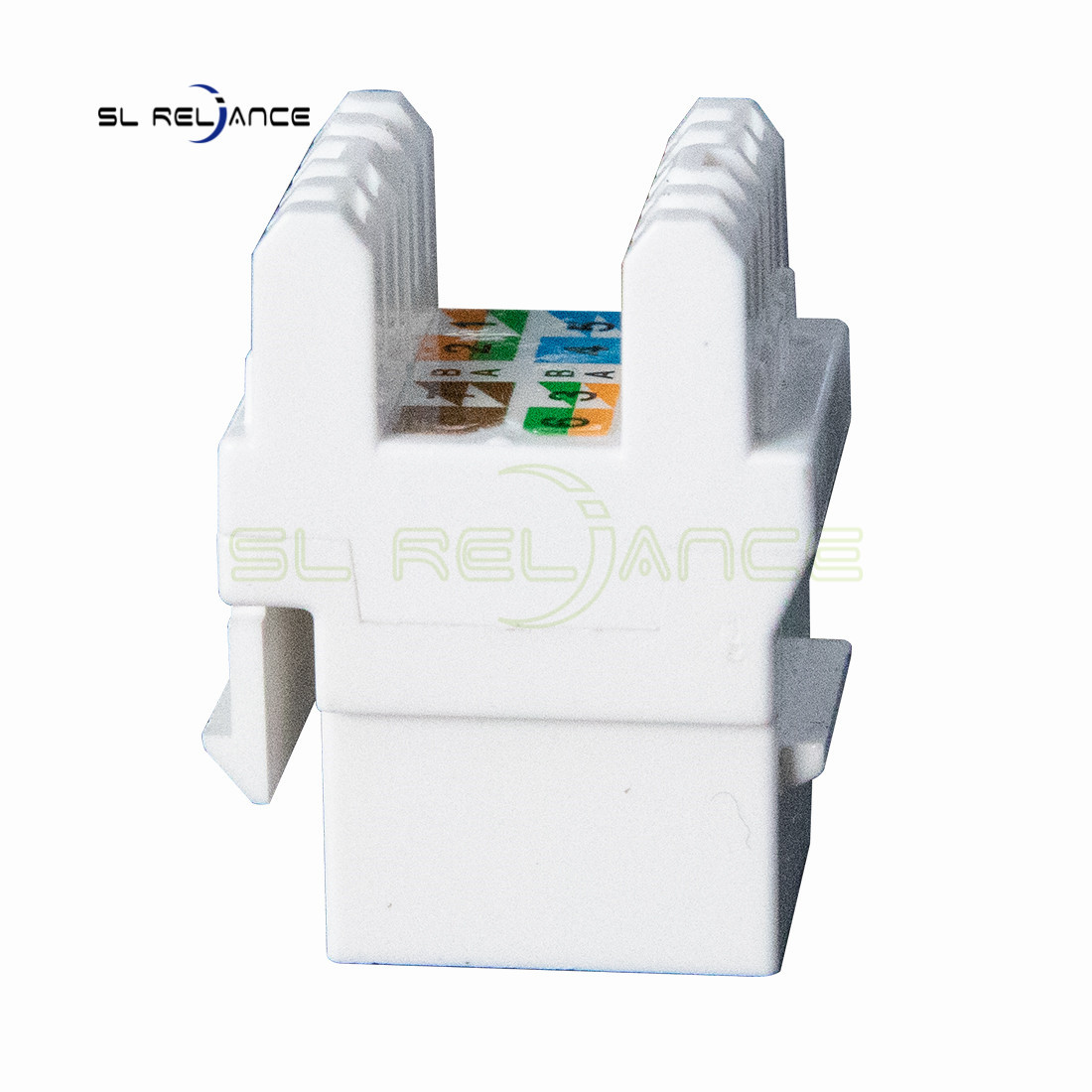

White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack

Brand Name : SL

Model Number : SL-JACK-20105E

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/A

Supply Ability : 100K PCS per WEEK

Delivery Time : 3-5 Days after payment

Packaging Details : 1000PCS/CARTON,

Product name : UTP CAT5e Short Body Tooless Keystone Jack

Model : 20105E

Shielded : UTP Short Body Type

Application : telecommunication

Category : Cat5e tooless

Angle : 180 Degree

Wire : AWG 22~26

Performance : Pass the Fluke Test

Pin : 8pin

Installation : Toolless

Contact Now

Category 5e RJ45 UTP 180 Degree Cat5e Copper Keystone Jack Black Color 8P8C Short Body Jack

SL keystone Jack is designed to comply with the transmission performance of Category 5e .

Transmission Performance:ANSI/TIA-568-C.2: meets or exceeds category 5e (1-100 MHz) component specifications

Jack Type:8p8c (8-position, 8-contact) “RJ45” style
Wiring Scheme:ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
Characteristics:Housing: high-impact thermoplastic, UL94V-0 fire-retardant
Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickel IDC: 110 type, phosphor bronze alloy with 100-μin 100% tin (Sn) alloy
Storage: -40 °C - +70 °C (-40 °F - +158 °F) Operation: -10 °C - +60 °C (+14 °F - +140 °F)
Media Type:Category 5E UTP

Model Number SL20105e
Name Keystone Jack
TYPE UTP unshieled Rotary
Category 5E
Material ABS +PC
Spring Phosphor Bronze & Gold-painted
Wiring mode: T568A/B
IDC Terminal 22-26 AWG Cable
IDC Pin: Phosphor Bronze & Tinned
RJ45 Insert pin 8P8C 8" Gold Plated
Color WHITE
Test Channel test and Flukee test


White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack

Electrical
Voltage Rating : AC 125V
Current Rating : 1.5 AMPS
Insulation Resistance: 500MΩ Min
Withstand Voltage: DC 1000V RMS 50-60Hz Min
Contact Resistange: 20MΩ Max
Mechanical
Insertion Force: 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength: 70N between jack and plaug;60N between wire and IDC
Durability: Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire: AWG 24-26
Material
Housing: PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing: PC(UL94V-0);PBT(UL94V-0)
Spring Wire: T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact : Phosphor bronze;Nickel plating
Shielding: T=0.25mm copper alloy with tin plated gold
Plating : 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature: -10°c-60°c
Humidity: 10-90%



White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack
