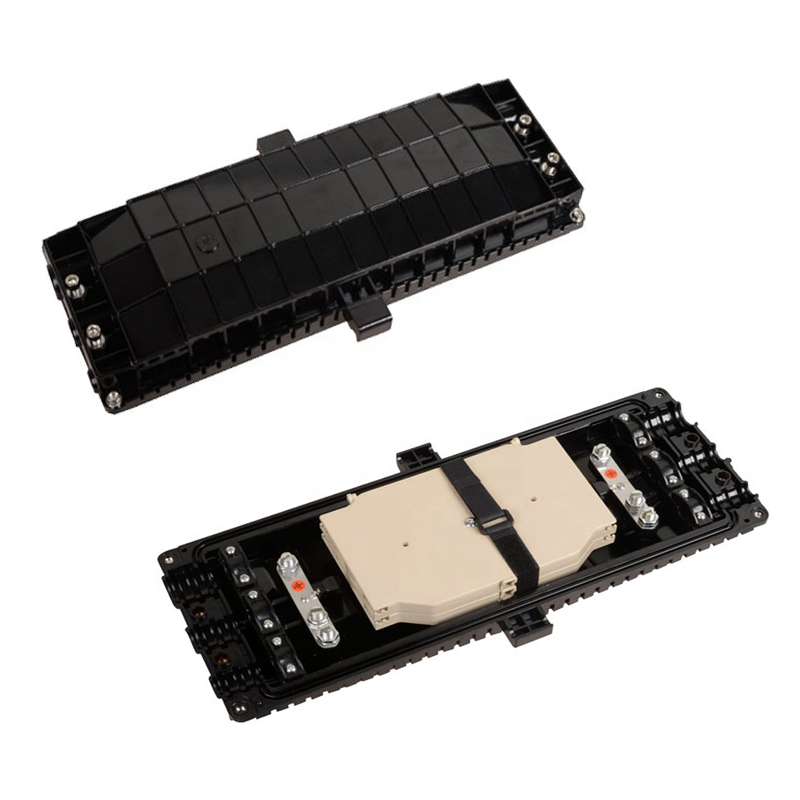

3 Inlet 3 Oulet7 2 Core Fiber Optic Splice Closure Horizontal Type Enclosure Optical Cable Joint Box
3 in 3 out Fiber Optic cable enclosure provide with 6 fiber cable in-out round ports.
It can be used in wall-mounting ,underground ,and direct buried application. This product is made of the high-quality PC and with the mechanical sealing structure filled with the sealing material.
The main application for vertical fiber optic splice closure is in CATV, telecommunications and fiber optic networks. They are suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Application:
· FTTH, FTTB, FTTC
· Telecommunication Network
· CATV
· Local Area Network
Features:
1,Advanced internal structure design
2,Easy to re-enter, it never requires re-entry kits
3,Slide-in-lock design ,over 90º opening angle tray
4,Earthling deriving device can be installed on the house of FOSC
5,Elastic integrated seal fitting
6,Operating Temperature : -40~+65 °C
| Product Name | 48C 72C 96C Fiber Optic Splice Closure | | Model No. | SL-FOSC-003-48C with 2PCS 24C Splicing Tray | | Model No. | SL-FOSC-003-72C with 3PCS 24C Splicing Tray | | Model No. | SL-FOSC-003-96C with 4PCS 24C Splicing Tray | | Product Size (mm) | 445x220x110 MM | | Fiber Count | 12-96 | | Unit Weight KGS | 2.7 KGS | | Qty per Carton PCS | 8 PCS | | Carton Size CM | 47*51*46CM | | Gross Weight KGS | 23 KGS | | Volume CBM | 0.11 CBM | | Diameter of Fiber Cable | Max Φ14mm | | Max Capacity(Cores) | 96F, | | Core Capacity per Tray | 12 or 24 | | Operation Temperature | -40~65 (°C) | | Storage Temperature | -40~65 (°C) | | Material | ABS | | Installation Method | Wall-mounted, pole-mounting, manhole | | Application | FTTH FTTB FTTX Network | | Waterproof | IP68 | |
| Optional Accessories List | |
| 1 | Steel Tape |
| 2 | Insulation Tape |
| 3 | Abrasive Cloth |
| 4 | Earthing Wires |
| 5 | Nylon Ties |
| 6 | Labeling paper |
| 7 | Heat Shrintable Protective Sleeve |
| 8 | Desiccant |
| 9 | Special Wrench |
| 10 | Hanging Hook |
| 11 | Wall Mounting Bracket |
| 12 | Buffer Tube for Bunchy Fiber |
Q : Why Choose us be one of your partner?
A : 1 ) Quality Assurance
2 ) Quick Response
3 ) Free Sample Available
4 ) Win-Win Price offer
Q : Is OEM accepted?
A : 1 ) LOGO print On Cable jacket is ok
2 ) Order above 500Roll, also can do your brand box free of charge.
Q : What is the method of Shippment?
A : 1 ) By Sea, FCL full container / LCL cargo is ok
2 ) By Air, Any of the International Express, such as DHL/Fedex etc.
3 ) By Railyway or Road Truck
Q : Can i get sample?
A : Sample is available upon request.
Q : What is the Payment Terms?
A : TT,Western Union, Paypal. 30% Deposite to Confirm Order , 70% Balance Paid Before Shippment.
