Unitube Non - Metallic Non - Armored Cable GYFXY 1 - 24 Core Fiber Optic Cable
Description:

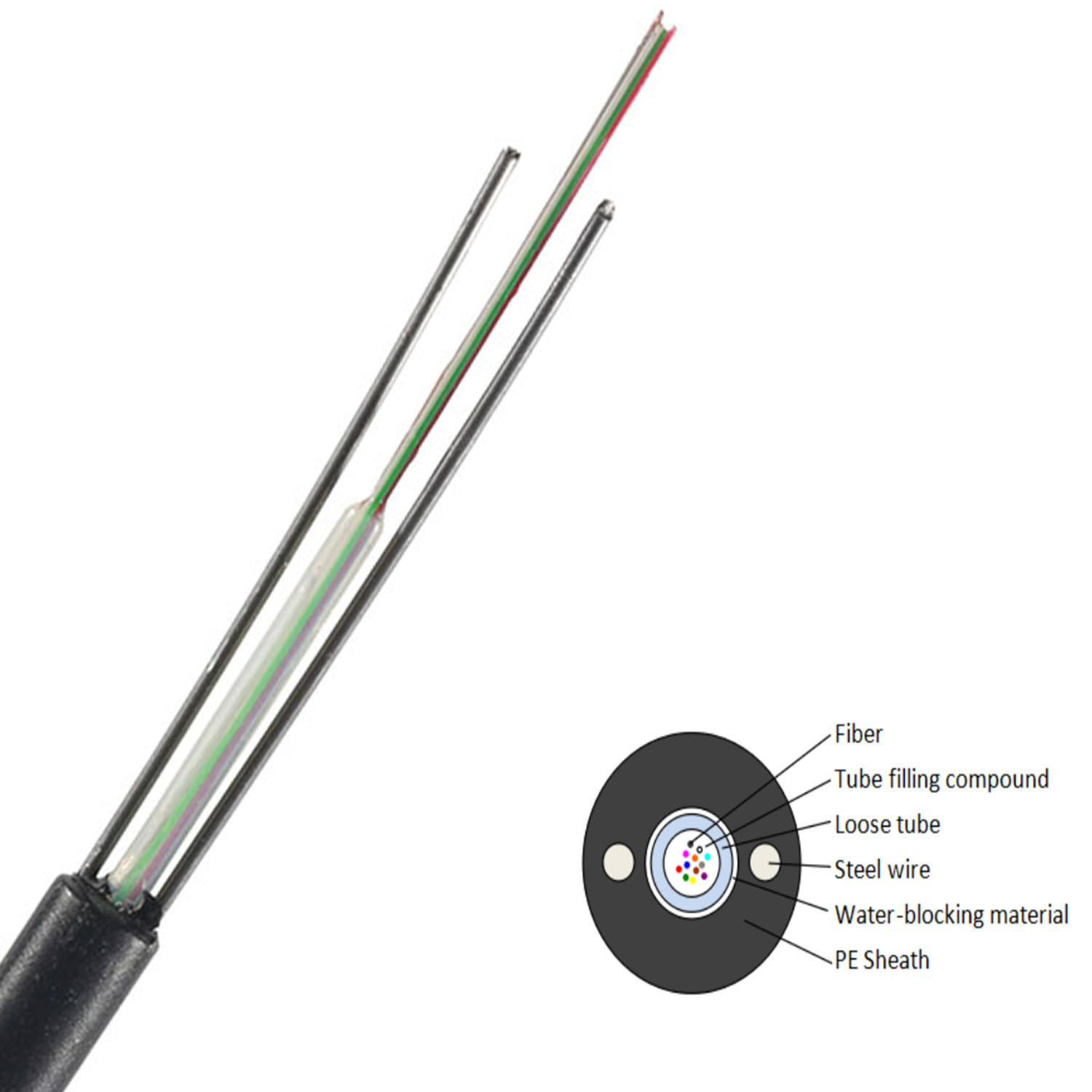

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Two parallel FRPs ensure tensile strength
· PE sheath protects cable from ultraviolet radiation
· Small diameter, light weight and friendly installation
· Long delivery length
Standards:
GYFXY cable complies with Standard YD/T 769-2003.
Structure and Technical Specifications
| Item | GYXY/GYFXY |
| Brand name | SL |
| Cable Diameter | 5.0mm~8.0mm |
| Strength Member | 2*1.0mm steel wire |
| Fiber account | Nominal Cable Diameter | Nominal weight | Allowable Tensile Load | Allowable Crush Resistance |
| (KG/KM) | (N) |
| | short term | long term | short term | long term |
| 2~12 cores | 6.0mm | 50 | 1000 | 400 | 1000 | 800 |
| 14~24 cores | 7.0mm | 65 | 1200 | 500 | 1000 | 800 |
Note:
Larger spans can be achieved if necessary with installation sags larger than 1% of span. This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Rose | Aqua |
| Loose tube color code | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Rose | Aqua |
| OPTICAL FIBER |
| Fiber Type | G.652D |
| Mode Field Diameter | @ 1310 nm | 9.2±0.4µm |
| @1550 nm | 10.4±0.8µm |
| Cladding Diameter | 125.0±0.7µm |
| Core concentricity error | ≤ 0.5µm |
| Cladding non-circularity | ≤ 1.0% |
| Coating diameter | 245±10µm |
| Attenuation | @ 1310 nm | ≤ 0.36 dB/km |
| @ 1550 nm | ≤ 0.22 dB/km |
| Dispersion | @ 1285 -1330nm | ≤ 3.4 ps/(nm.km) |
| @ 1550 nm | ≤17.5 ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 nm |
| zero dispersion slope | ≤0.092 ps/(nm2.km) |
| cable cut-off wavelength | ≤1260 nm |
| Proof stress | ≥ 0.69 Gpa |
| Polarization mode dispersion | ≤0.2 ps/√Km |
| Uncabled fiber macrobending loss | Radius(mm) | 15 |
| number of turns | 10 |
| Max.@ 1550nm(dB) | 0.25 |
| Max.@ 1625nm(dB) | 1 |
| Cable Sheath Marking |
| XXXOFC 2021 GYFXTY-FL XXCORE (G.652D) XXXXM |
| XXXOFC | manufacture's brand, (as client order) |
| 2021 | manufacture year |
| GYFXTY-FL | cable type |
| XXB1.1(G.652D) | XXcores SM fiber(ITU-T rec.G.652D) |
| XXXXM | marks for meters |
